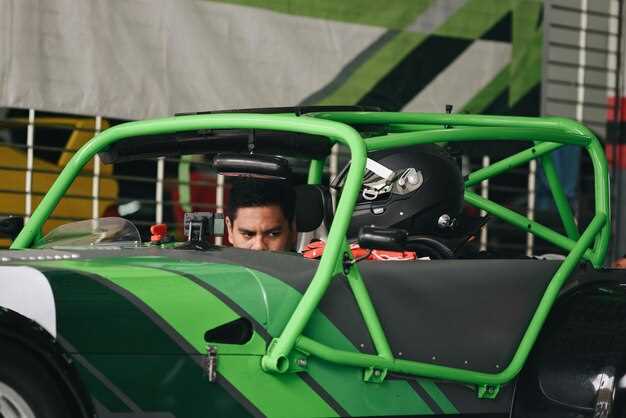

Creating a racing roll cage is a critical aspect of car safety in motorsport. A well-constructed roll cage not only enhances driver protection but also contributes to the overall performance of the vehicle. This article delves into the essential steps and considerations involved in the fabrication of a custom roll cage, enabling enthusiasts to build one tailored to their specific racing needs.
When embarking on the project of building your own roll cage, understanding the materials and techniques involved in fabrication is fundamental. Steel is typically the material of choice due to its strength and durability, though various alloys may be used depending on the specific requirements and weight considerations of your racing application. Proper planning and design are crucial, as the roll cage must comply with safety regulations while maximizing structural integrity.
In this article, we will guide you through the entire process, from measuring your vehicle’s interior space to selecting the appropriate tools for cutting and welding. Our step-by-step approach aims to equip you with the knowledge and skills necessary to successfully create a roll cage that not only meets safety standards but also enhances your racing experience.
Selecting Materials and Tools for Roll Cage Fabrication
When building a roll cage, choosing the right materials is crucial for both safety and performance. Most roll cages are constructed using either mild steel or chromoly steel. Mild steel is more affordable and easier to work with, making it a popular choice for amateur builders. However, chromoly steel offers a superior strength-to-weight ratio, allowing for a lighter cage without compromising safety. Assess your budget and the intended use of your vehicle to make an informed decision.
The diameter of the tubing is also an essential factor. Common sizes for roll cage tubing range from 1.5 to 2 inches, with wall thicknesses typically around 0.120 inches for mild steel and 0.095 inches for chromoly. Thicker tubing adds weight but enhances structural integrity, which is vital for competitive racing environments.
In addition to the tubing, consider the type of joints you will use. Welded joints are commonly preferred for their strength and durability, while bolted connections allow for easier disassembly. Ensure that the welds meet the required specifications for your racing class, as some leagues have specific rules regarding cage construction.
Alongside choosing the right tubing, having the correct tools is equally important. A quality MIG welder is essential for joining steel sections. If you’re working with chromoly, an experienced welder familiar with TIG welding is recommended. Other essential tools include a band saw or pipe cutter for precise cutting, a bender for shaping the tubing, and a grinder to clean edges and prepare surfaces for welding.
Safety equipment cannot be overlooked. Invest in protective gear such as gloves, a welding helmet, and long sleeves, to ensure personal safety while fabricating your roll cage.
Lastly, ensure that your workspace is organized and well-equipped. A clean area will make the fabrication process smoother and safer. With the right materials and tools, you can build a roll cage that will stand the test of time and enhance your vehicle’s performance on the track.
Step-by-Step Guide to Designing Your Roll Cage Layout
Designing a roll cage layout is a critical aspect of the fabrication process, ensuring your vehicle is structurally sound and safe during racing. Begin by assessing the vehicle’s make and model to understand the spatial constraints and safety requirements specific to your racing category.
Next, gather necessary measurements of the interior space, including height, width, and depth. This will help you determine the optimal placement for the roll bars while maximizing driver visibility and comfort. Use a sketch to outline your vehicle’s interior, marking potential locations for main and diagonal bars.
After creating a layout sketch, identify key connection points that will provide maximum strength. The main hoop should be positioned behind the driver’s seat, with support tubes extending to chassis attachment points. Ensure that the layout adheres to safety regulations set by racing organizations, reinforcing areas that are prone to impact.
Once the basic framework is established, think about additional features such as door bars and gussets. Door bars improve side protection, while gussets reinforce junctions, adding rigidity to your roll cage. Lay these out on your sketch, ensuring they do not obstruct entry or exit for the driver and co-driver.
After finalizing the design, it’s crucial to create a detailed bill of materials specifying the types of tubing required, along with connectors and mounting hardware. Select suitable materials, such as DOM or chromoly steel, for their strength and weight characteristics.
With your design and materials in hand, you can move on to the actual fabrication process. Cut the tubing to size according to your layout, ensuring precise angles and lengths. Use a jig or fixture to hold components in place during welding, which is essential for maintaining alignment and integrity throughout the process.
Finally, after welding and grinding down any excess material, conduct a thorough inspection of your roll cage for structural soundness and compliance with safety standards. This step is vital to ensure your roll cage performs effectively during high-speed racing conditions.
Welding Techniques and Safety Practices for Roll Cage Assembly
When constructing a racing roll cage, mastering various welding techniques is crucial for ensuring both structural integrity and safety. The most commonly used methods for welding roll cages include MIG (Metal Inert Gas) welding, TIG (Tungsten Inert Gas) welding, and stick welding. Each method has its advantages and is suitable for specific applications. MIG welding is preferred for its speed and ease of use, particularly in projects with thicker materials. TIG welding provides superior precision and is ideal for thin-walled tubing often used in roll cages, while stick welding can be a reliable choice for outdoor environments.
Before starting the welding process, adequate preparation of the materials is essential. Clean the surfaces to remove any grease, paint, or contaminants that could affect the weld quality. Proper fit-up of the roll cage components will minimize gaps and ensure stronger joints. For tube frames, ensure that all joints are properly aligned, and use clamps or fixturing tools to maintain the correct position during welding.
Safety practices are paramount during the roll cage assembly. Always wear appropriate personal protective equipment (PPE), including welding gloves, a welding helmet with a suitable shade, and flame-resistant clothing. Ensure that your workspace is well-ventilated to avoid inhalation of harmful fumes. Moreover, keep a fire extinguisher nearby in case of emergencies. Be aware of the hazards of UV radiation generated during welding, which can cause skin burns, and protect surrounding areas from sparks and spatter.
Once the welding is complete, inspect all joints for penetration and continuity. Look for any signs of inadequate welds, such as incomplete fusion or undercutting. It is advisable to conduct a thorough check before any final assembly and installation of the roll cage into the vehicle. Adhering to these welding techniques and safety practices will not only enhance the quality of your racing roll cage but also ensure a safer environment for both the builder and the driver.
